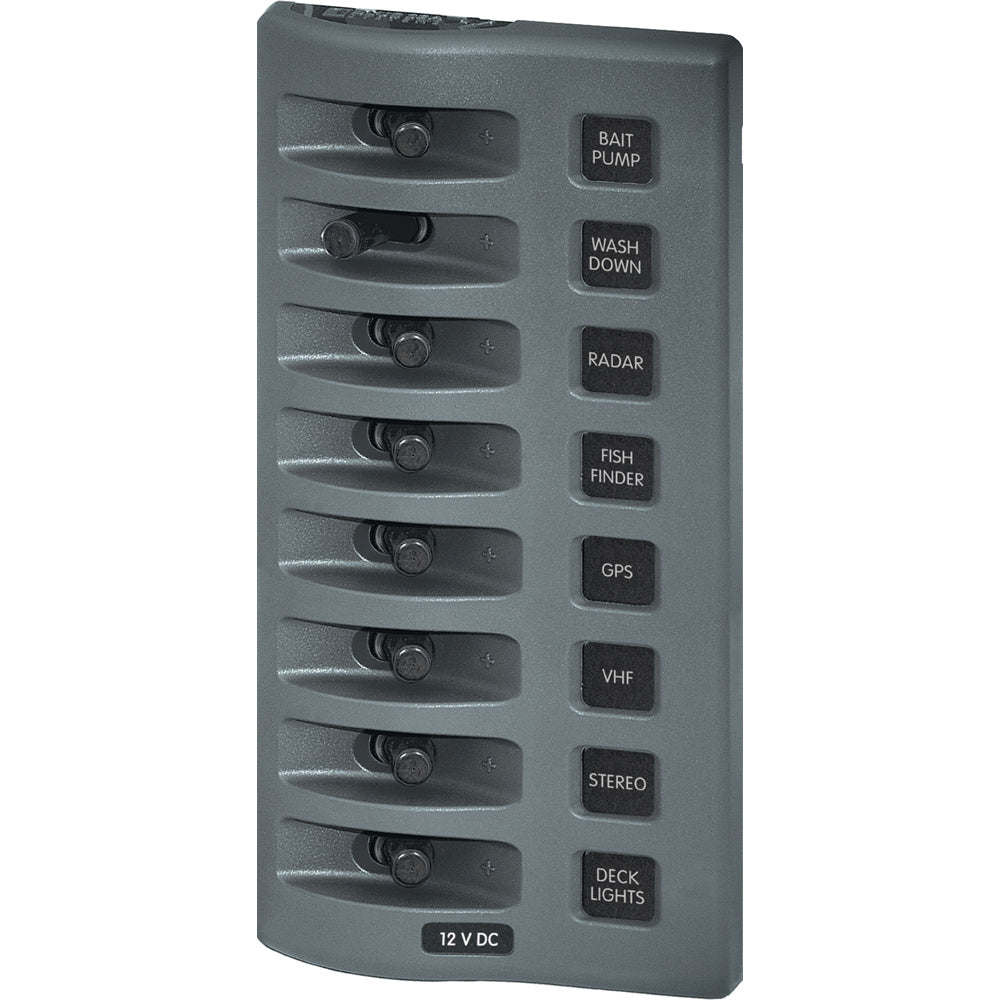

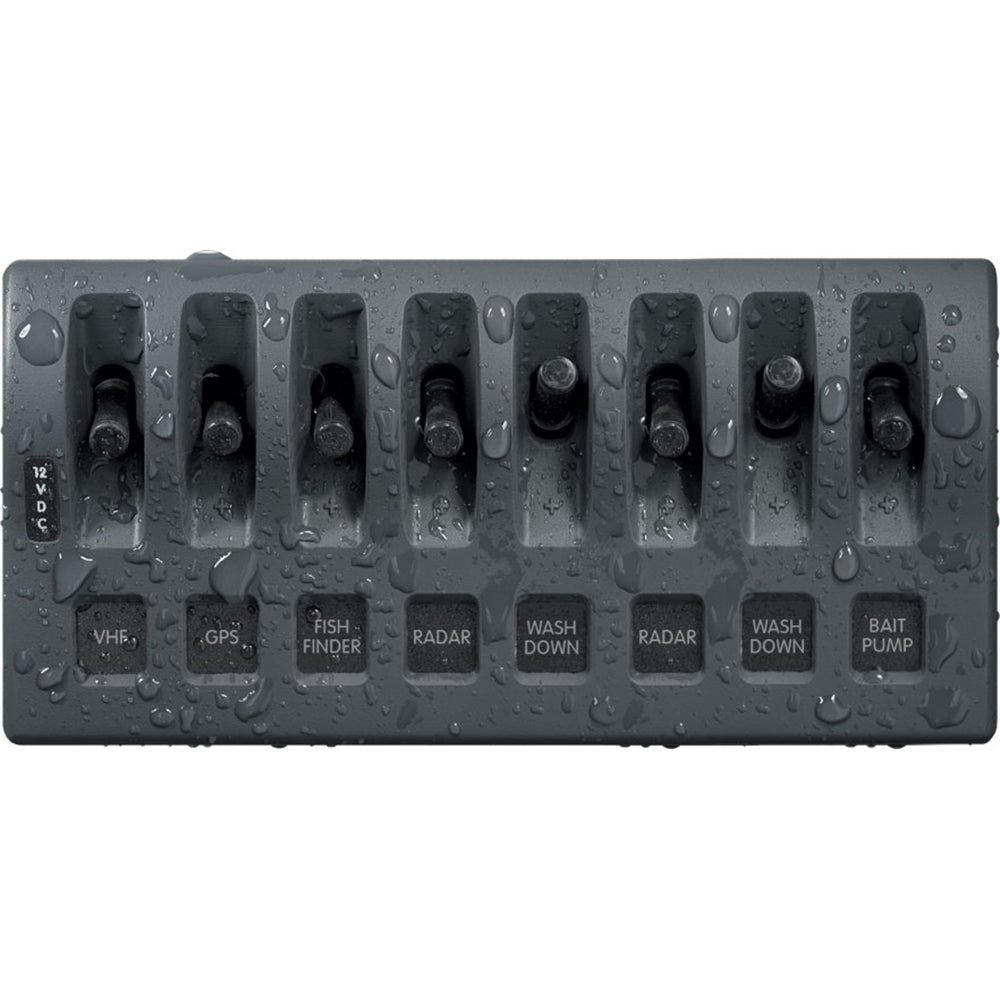

Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Position [4309]
Blue Sea Systems
SKU: CWR-51816
Increments of 1
Minimum of 1
Maximum of
Low stock
In stock
Couldn't load pickup availability
Sale price
$132.99 USD
-100%
Regular price
$0.00 USD
Regular price
$132.99 USD
Unit price
per
Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Position [4309]
Sale price
$132.99 USD
Regular price
$0.00 USD
Regular price
$132.99 USD
Unit price
per
WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70"(195.58 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.55lb (0.7 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Max Breaker Quantity: 8
- Waterproof: Waterproof
- Voltage: 12/24v
- Box Dimensions: 4"H x 6"W x 10"L WT: 1.2 lbs
- UPC: 632085043094
Owner's Manual (pdf)
Description
WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70"(195.58 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.55lb (0.7 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Max Breaker Quantity: 8
- Waterproof: Waterproof
- Voltage: 12/24v
- Box Dimensions: 4"H x 6"W x 10"L WT: 1.2 lbs
- UPC: 632085043094
Owner's Manual (pdf)
