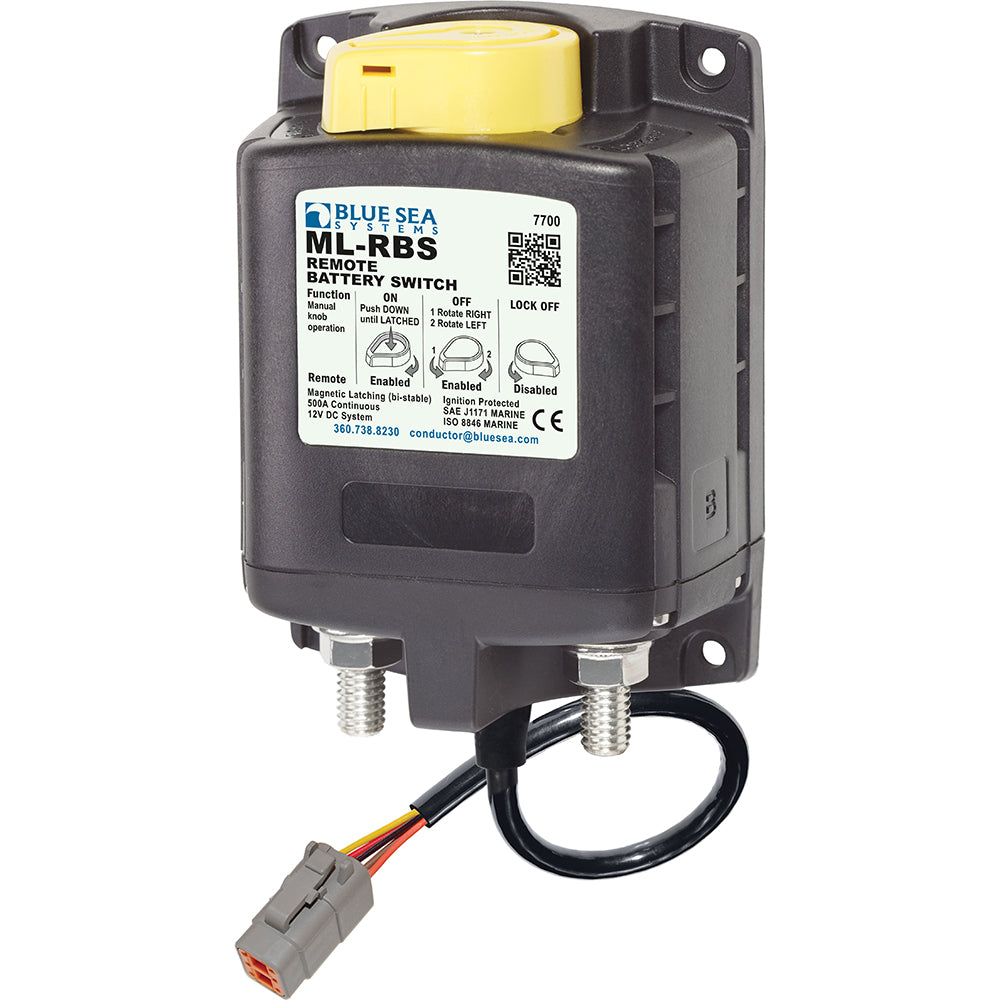

Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control Deutsch Connector [7700100]
Blue Sea Systems
SKU: CWR-81410
Increments of 1
Minimum of 1
Maximum of
Low stock
In stock
Couldn't load pickup availability
Sale price
$264.99 USD
-100%
Regular price
$0.00 USD
Regular price
$264.99 USD
Unit price
per
Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control Deutsch Connector [7700100]
Sale price
$264.99 USD
Regular price
$0.00 USD
Regular price
$264.99 USD
Unit price
per
7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.
Features:

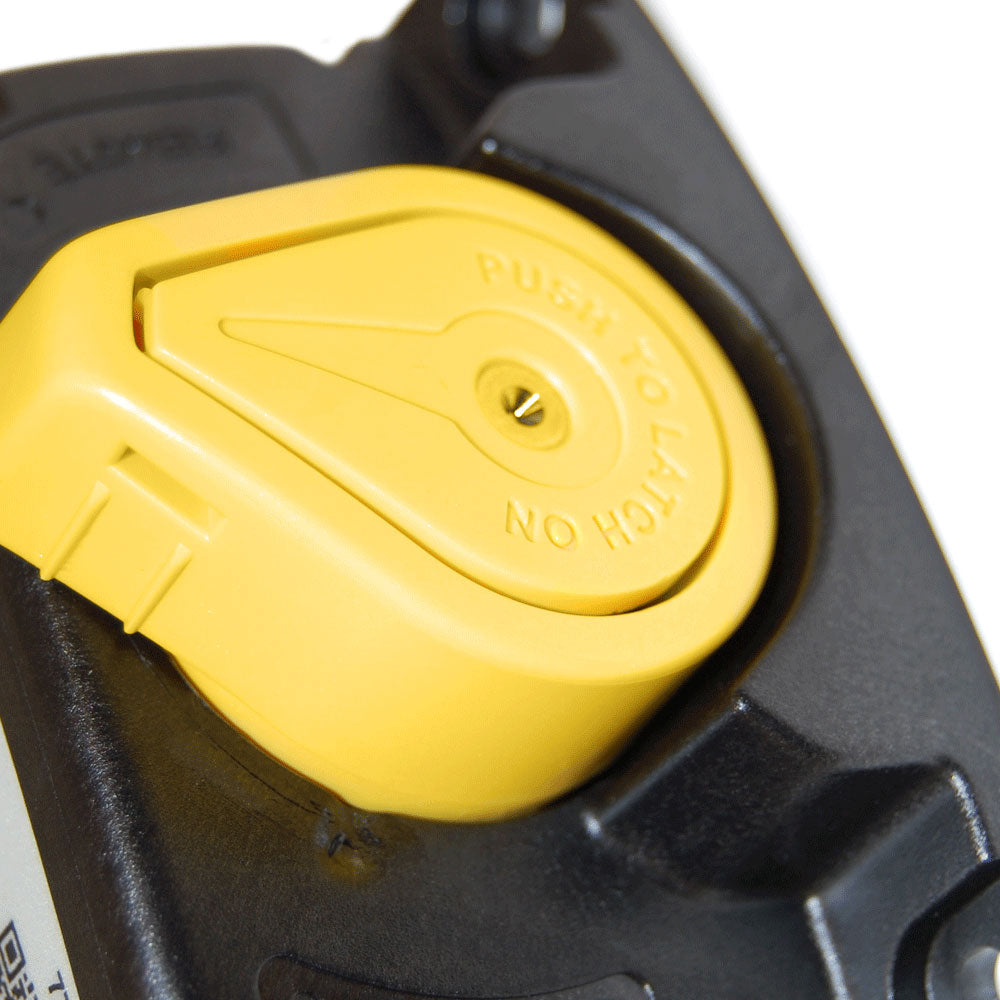

- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Specifications:
- Control Circuit Connection: Deutsch DTM
- Nominal Voltage: 12VDC
- Coil Function: Bi-Stable
- Mounting: #10
- Amperage Operating Current Continous: 0mA
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cranking Rating 30 Seconds: 1450A DC
- Cable Size to Meet Ratings: 2x (4/0)
- Live Current Switching: 300A@12VDC
- Master Control Switch Capability: No
- Mechanical Endurance: 100,000 Cycles
- Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
- Terminal Stud Length: 0.875" (22.23 mm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 1.75lb (0.79 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
