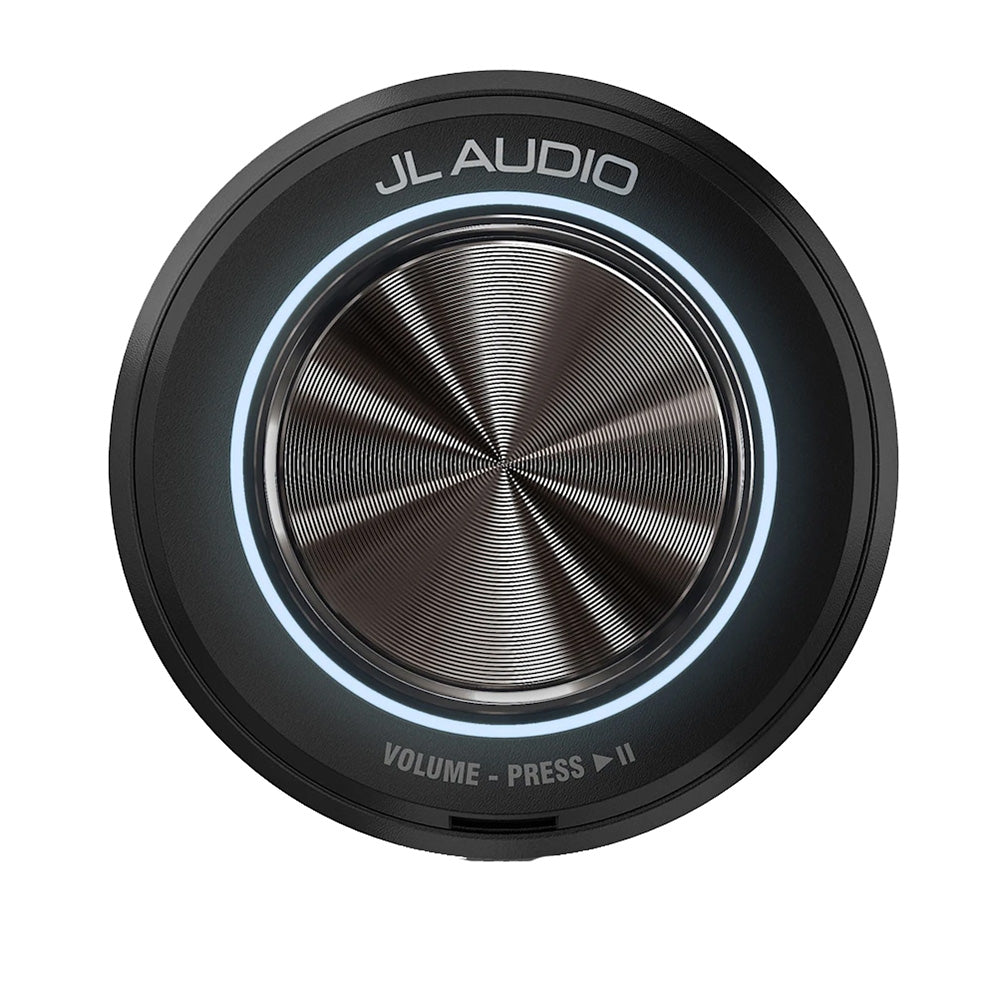

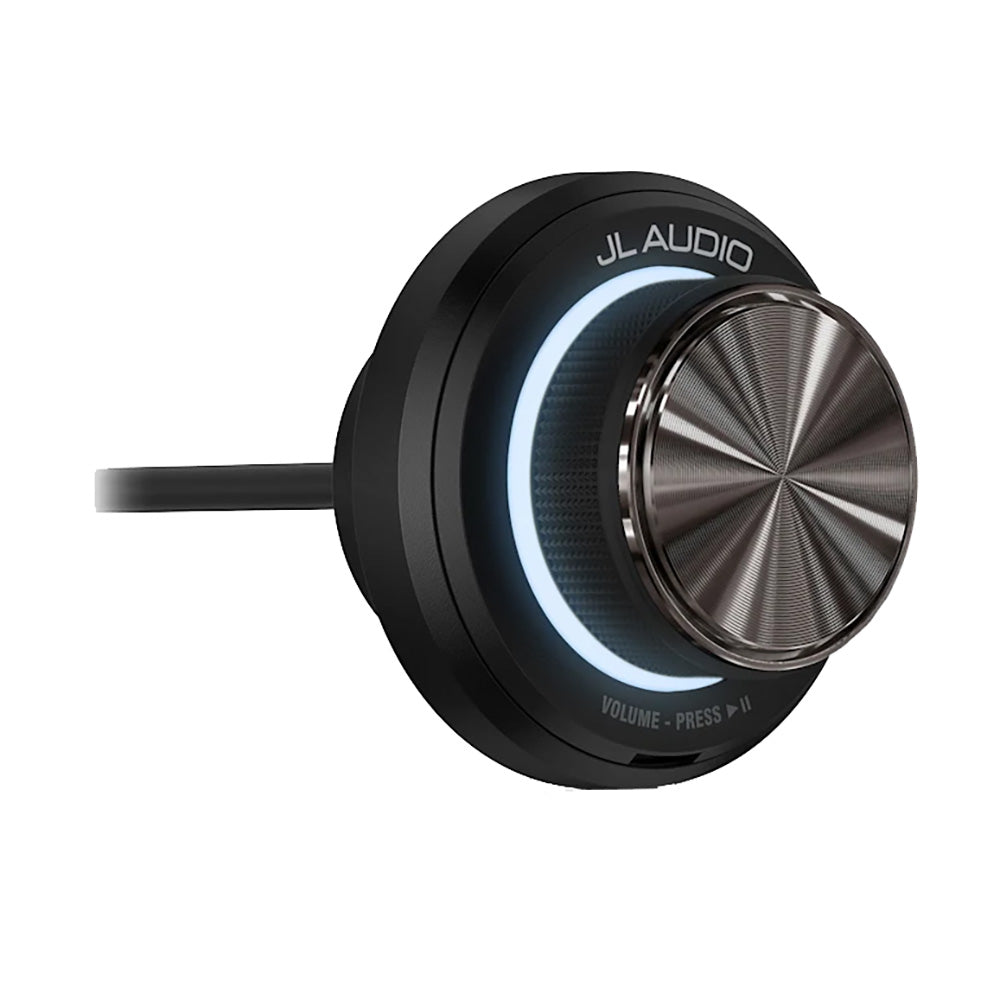

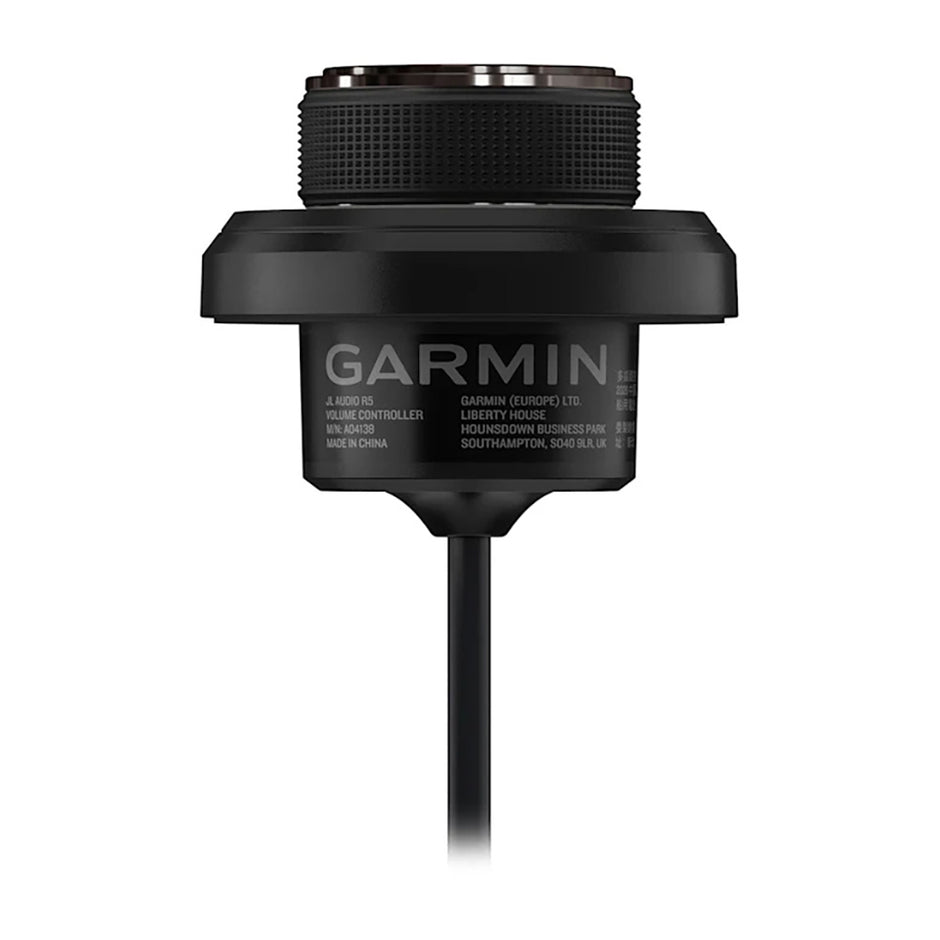

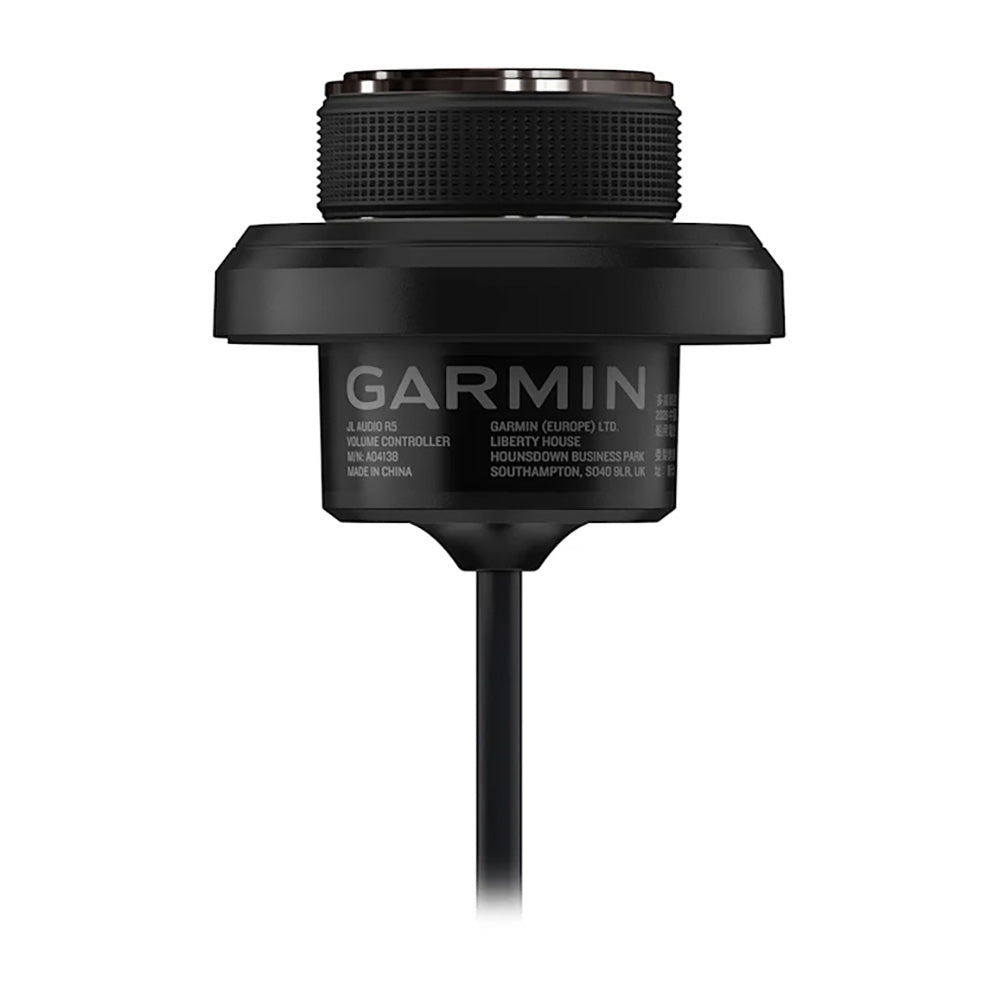

R5 Single Stereo Volume Controller
This easy-to-use volume controller can be front-mounted on your boat’s dash, and it controls all audio zones of a single head unit via a large single knob.
Features:
- LARGE SINGLE-KNOB CONTROL
- CONNECTS TO YOUR BOAT’S NMEA 2000® NETWORK
- ADJUSTS ALL AUDIO ZONES OF A SINGLE HEAD UNIT
- PLAY OR PAUSE WITH THE PUSH OF A BUTTON
- REQUIRES A SINGLE 1.5-INCH HOLE FOR INSTALLATION
- IPX7-RATED FOR MARINE ENVIRONMENTS
General:
- Warranty: 1 year
- Physical dimensions (Height): 2.35" (60 mm)
- Physical dimensions (Width): 2.35" (60 mm)
- Physical dimensions (Depth): 2.04" (52 mm)
- Control surface dust/water rating (when properly installed): IPX7
- Operating temperature range: 32° F to 122° F (0° C to 50° C)
- Current draw (max): 110 mA
- Power Input: 10.8-16 VDC
- Compass-safe distance: 3.94" (100 mm)
Networking & Connections:
- NMEA 2000® ports: 1 (Micro-C connector)
- NMEA 2000® LEN: 2 (100 mA)
In The Box:
- JL Audio R5 single stereo volume controller
- T-connector for the NMEA 2000® network
- Two screws
- Documentation
*Not compatible with JL Audio MediaMaster® Source Units
