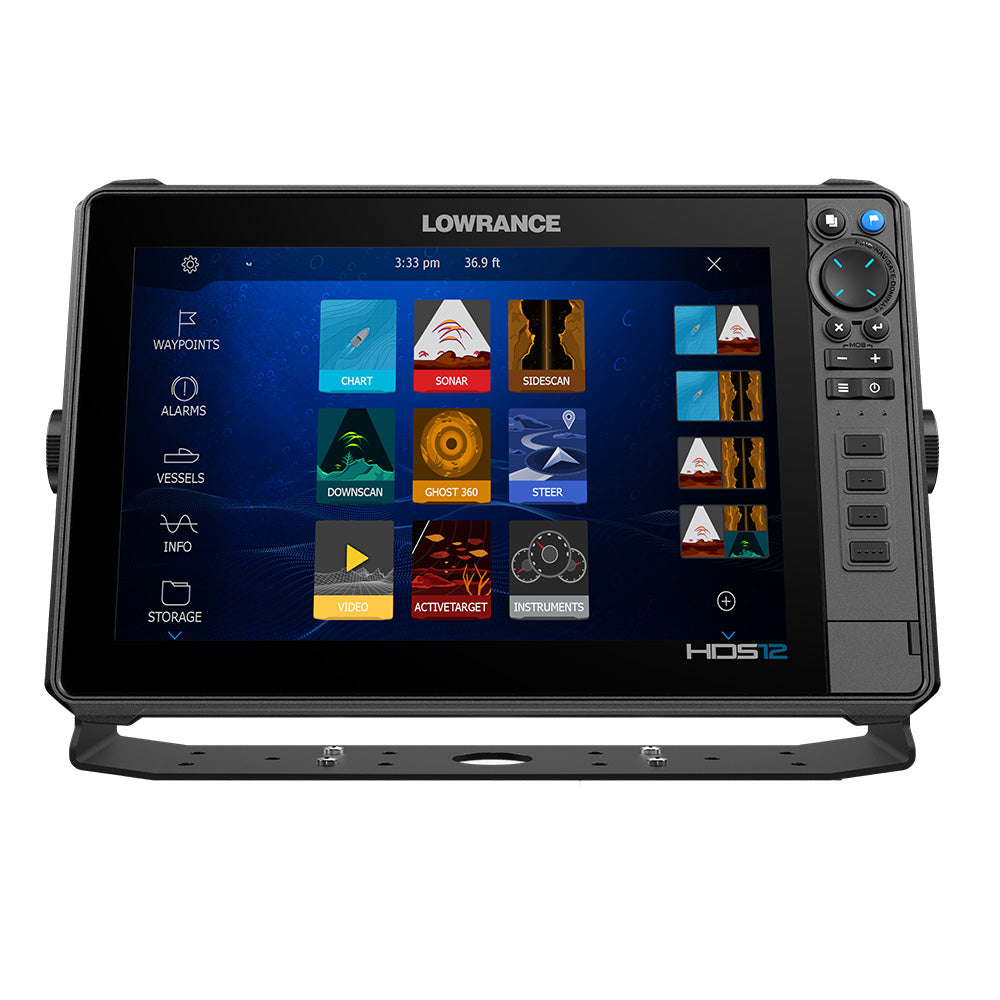

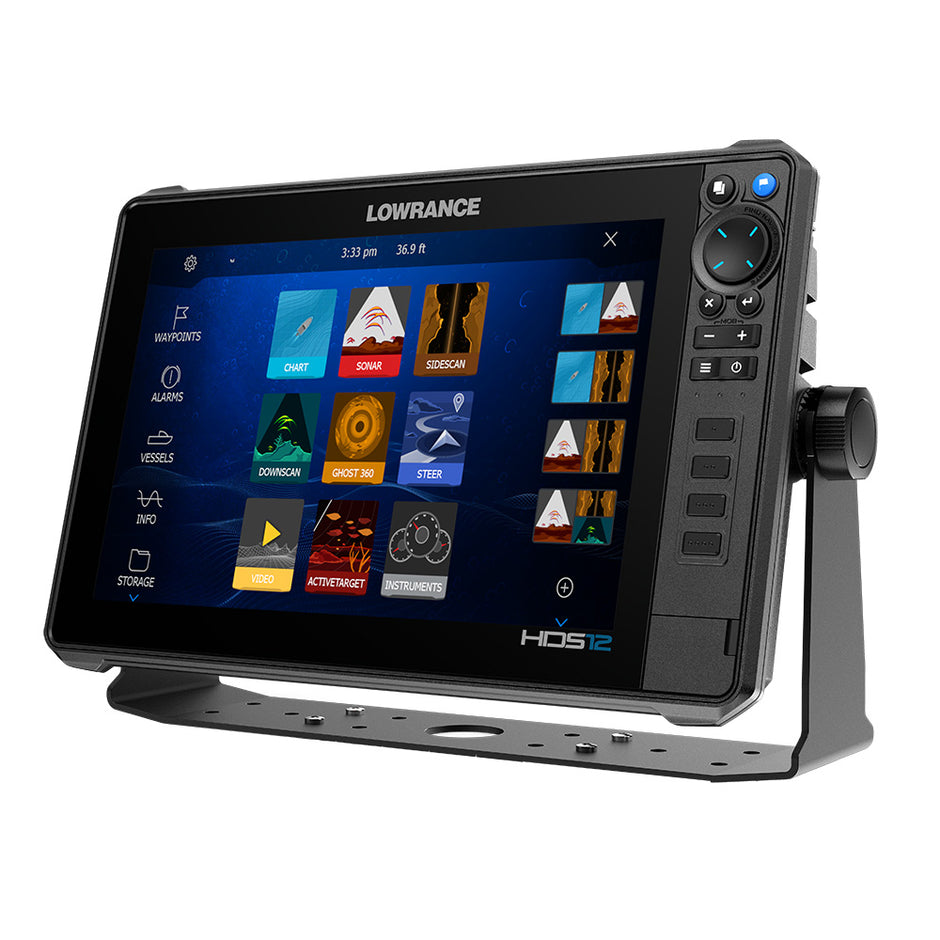

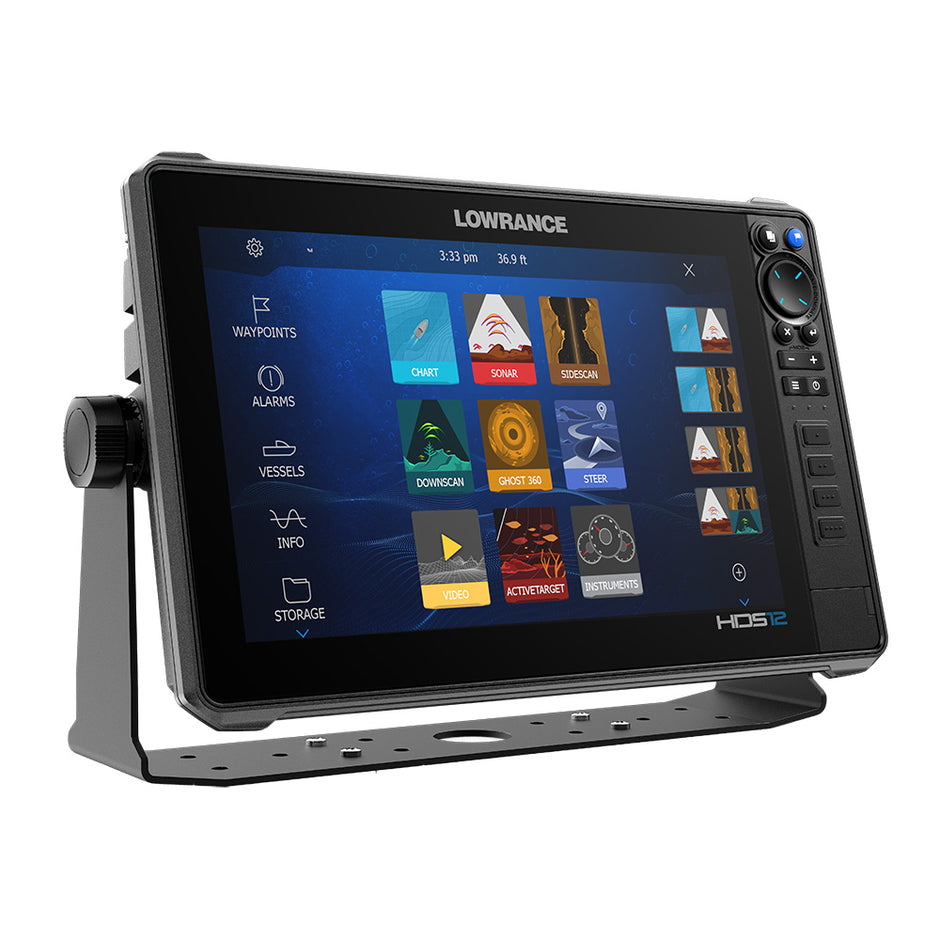

Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard - No Transducer [000-16002-001]

HDS PRO 12 - with Preloaded C-MAP DISCOVER OnBoard - No Transducer

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

• HDS PRO fishfinder/chartplotter (12-inch display screen)
• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
• SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
• High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
• High-resolution ActiveTarget 2 Live Sonar ready
• FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
• Real-time mapping is available with C-MAP Genesis Live.
• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
• Large programmable keys
• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
• NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications

Display:

• Backlight Color: Pure white LED
• Display Resolution: 1280 x 800
• Viewing Angles: 80° top/bottom, 80° left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
• NMEA 2000 Connectivity: 1x Micro-C
• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on
• Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on
• Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on
• Recommended Fuse Rating: 5A
• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )

 GPS:

• GPS Receiver Channels: 16
• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
• Internal Storage: 8.0 GB Internal
• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

*Sidescan Fish Reveal requires S3100 module and a compatible transducer

Specifications:

• Cartography Brand: C-Map
• Screen Size: 12"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 7"H x 16"W x 17"L WT: 11 lbs
• UPC: 9420064129829
