Navico B75H 20 Bronze Thru-Hull CHIRP xSonic 9-Pin [000-16191-001]
Navico
SKU: CWR-101344
Increments of 1
Minimum of 1
Maximum of
Low stock
In stock
Couldn't load pickup availability
Sale price
$894.00 USD
-100%
Regular price
$0.00 USD
Regular price
$894.00 USD
Unit price
per
Navico B75H 20 Bronze Thru-Hull CHIRP xSonic 9-Pin [000-16191-001]
Sale price
$894.00 USD
Regular price
$0.00 USD
Regular price
$894.00 USD
Unit price
per

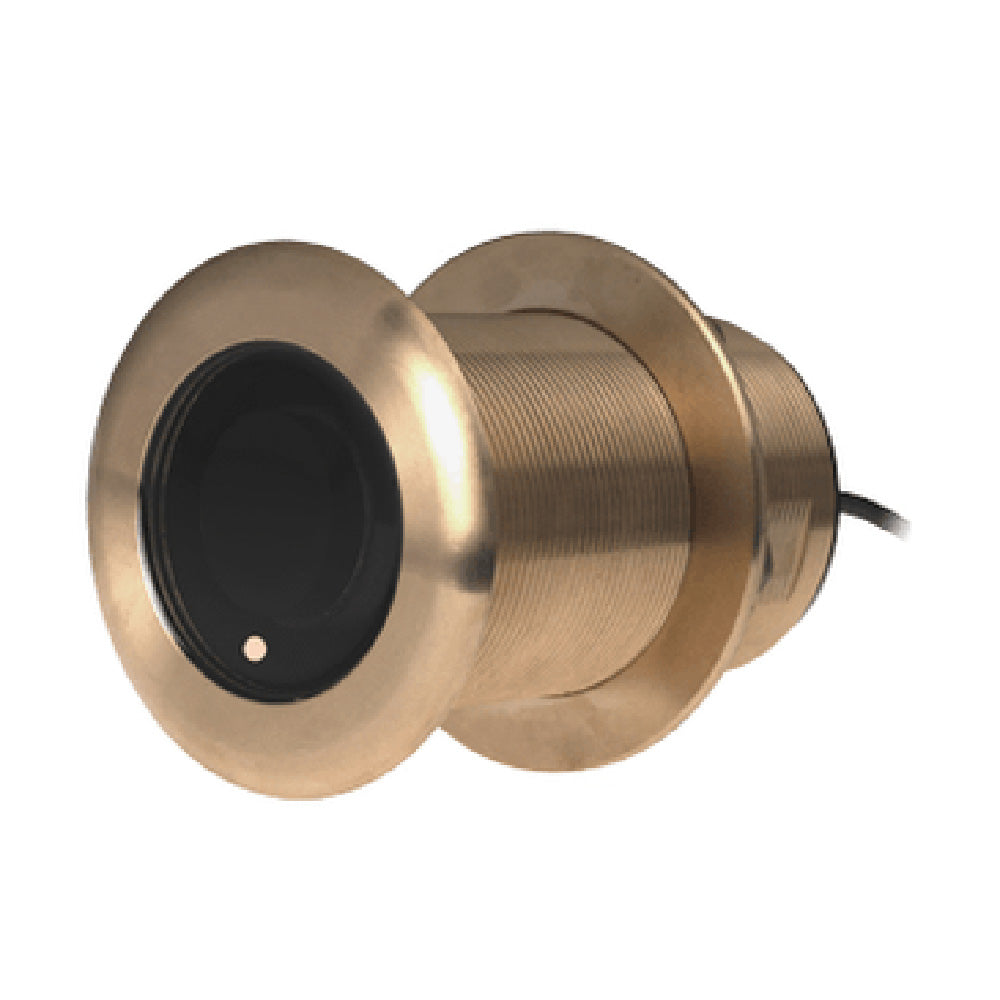

B75H 20° Bronze Thru-Hull CHIRP xSonic 9-Pin
The B75H is a bronze, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Features:
- CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
- Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
- Easy To Install
- High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
- Highly Accurate - Provides extremely accurate data
- 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise
- Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull
- Plug & Play Connection - Easily connect to NSS, NSE, NSO or Lowrance
Specifications:
- Cable Length (Feet): 33'
- Chirp: High
- Imaging: Standard
- Mounting Style: Thru-Hull
- Pins: 9
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 5"H x 8"W x 12"L WT: 6.2 lbs
- UPC: 9420064132171
Description
B75H 20° Bronze Thru-Hull CHIRP xSonic 9-Pin
The B75H is a bronze, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Features:
- CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
- Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
- Easy To Install
- High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
- Highly Accurate - Provides extremely accurate data
- 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise
- Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull
- Plug & Play Connection - Easily connect to NSS, NSE, NSO or Lowrance
Specifications:
- Cable Length (Feet): 33'
- Chirp: High
- Imaging: Standard
- Mounting Style: Thru-Hull
- Pins: 9
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 5"H x 8"W x 12"L WT: 6.2 lbs
- UPC: 9420064132171
